BBTPS1F2v1p1

BBTPS1F2v1p1 BBTPS1F2v1p1 BBTPS1F2v1p1

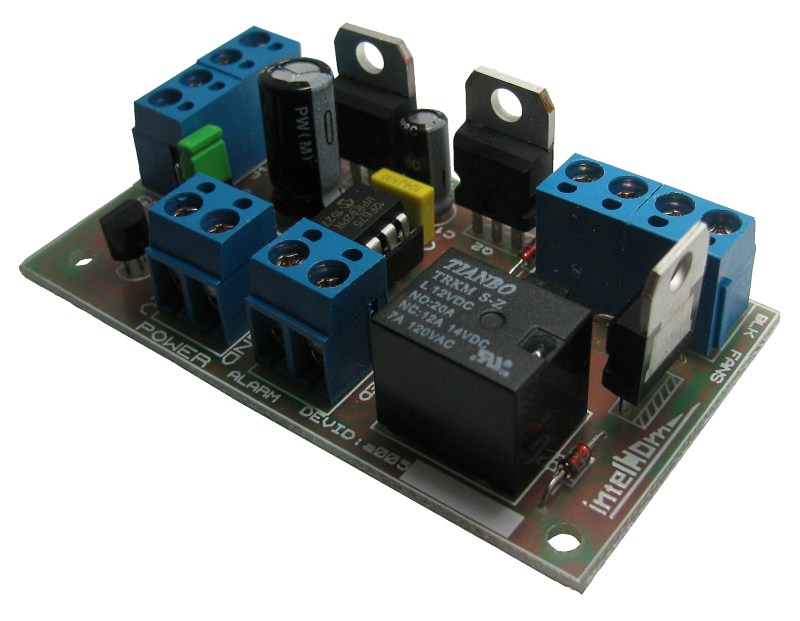

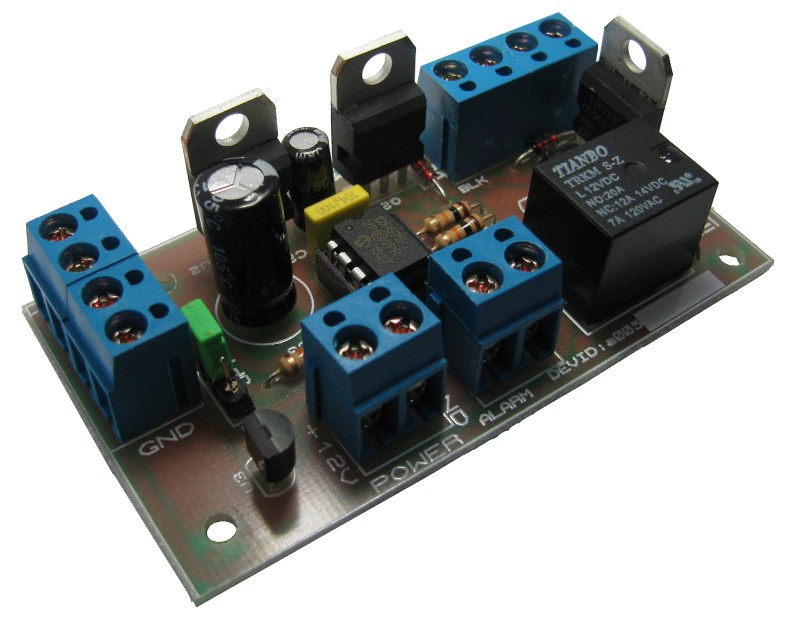

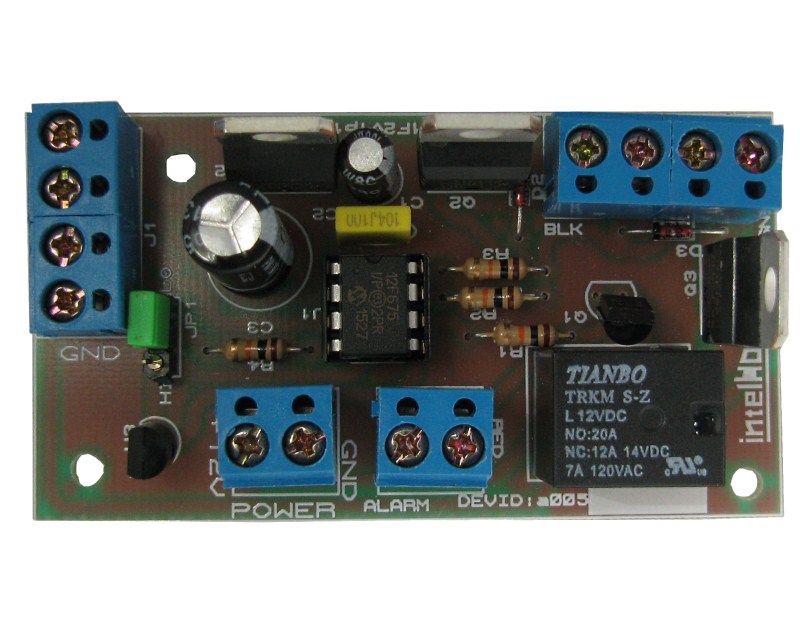

This module is a thermal protection for the boards' box; it is measuring the box temperature continuously and starts the fans if it became more than 55°C. If the temperature raises over 80°C, it turns the system off and fires the alarm. The system will be turned on again after cooling. There is a jumper on the board, that changes the threshold temperatures; If the jumper is in "LO" position the values are the ones that said above. If the jumper is in "HI" position the fans will be started at 65°C and the system will be turned off at 90°C.

Download Module Datasheet - 631KB
